Type
Bedpan washer with manual opening
Opening/closing door
Manual flap door
Washing capacity
4 urinal bottles; 2 urinal bottles + 1 bedpan; 2 bedpans (optional)
Medical device according to (EU) Regulation 2017/745 (Annex IX) class IIa
Yes

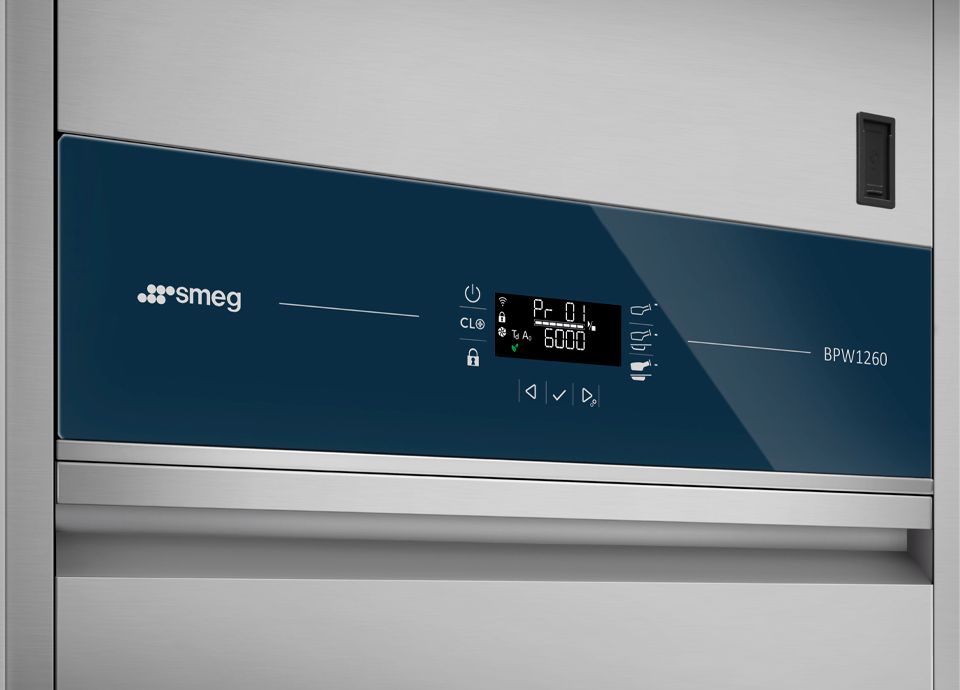

Intuitive control panel
The Smeg manual bedpan washer has a simple and intuitive control panel with a wide selection of programmes including three preset programmes and a cycle validated for Clostridium Difficile.

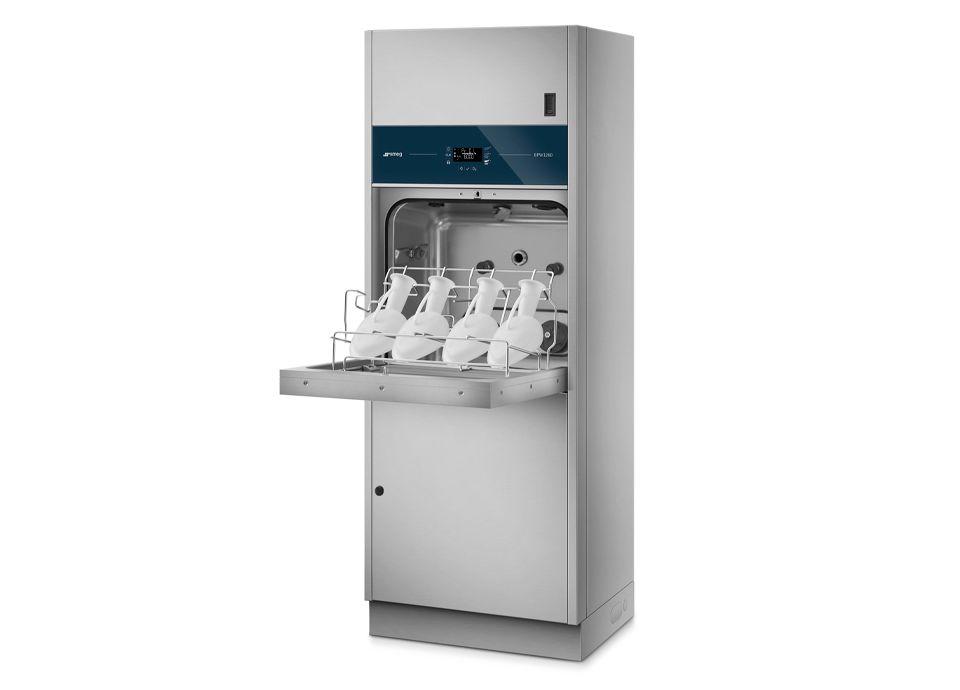

Loading flexibility
In a width of just 60 cm, the Smeg bedpan washer can accommodate up to four bedpans or two bedpans, offering maximum loading flexibility.

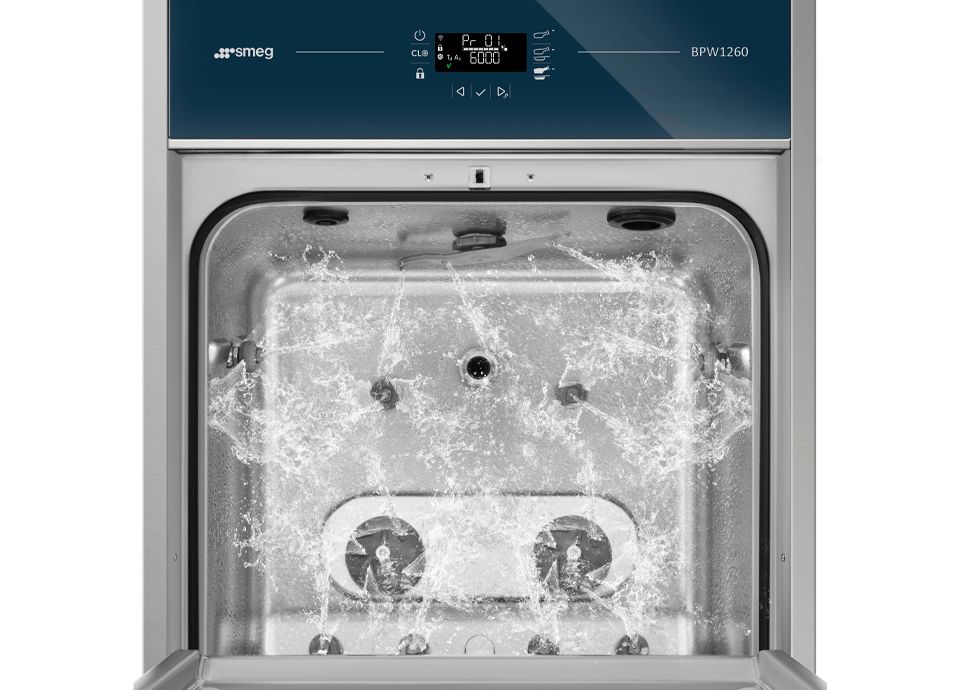

Smart washing
Three hydraulic circuits with fixed and rotating nozzles ensure optimal water distribution during washing, activating in succession for targeted disinfection depending on the dirt to be treated inside and outside the medical devices.

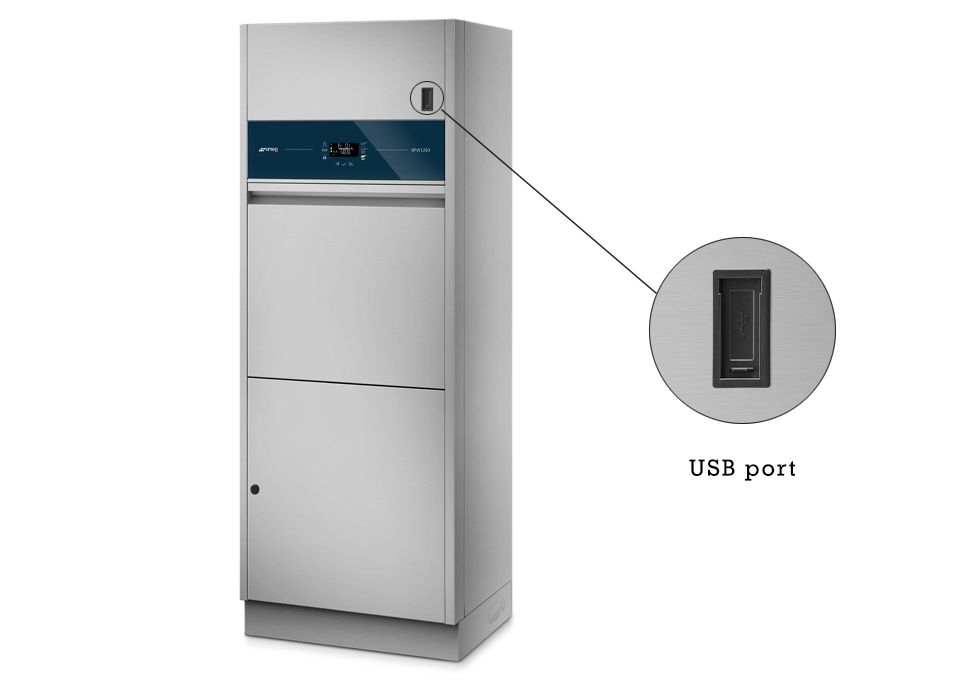

Data recording
Thanks to the USB port, it is possible to download the usage data archive with a PC connection or by means of a memory stick.
Target
Health Care Sector:
Nursing Homes; Hospital ward
Instruments Solutions:
Health Care
Aesthetics
Colour:
Steel
Type
Product Family:
Bedpan washers
Type:
Bedpan washer with manual opening
Technical Features
Washing capacity:
4 urinal bottles; 2 urinal bottles + 1 bedpan; 2 bedpans (optional)
Door:
1, swing door in stainless steel
Opening/closing door:
Manual flap door
Emergency opening system:
Yes
Sky sprinkler:
Yes
Sprayer rotation control:
Yes
HEPA Filter:
Optional
Noise level (dbA):
<60 dBA
Dimensions of the product (mm):
1600x600x450
Programs
Standard programs stores:
Urine bottles program, Bedpan normal program, Intensive bedpan program
Eco Standard programs stores:
ECO urinal bottles program , ECO bedpan program , ECO Intensive Program for bedpans
Optional programs installed in factory:
Multifonctional support program, Clostridium Program
Program editing:
Yes
Adjustable A0:
Yes, from 60 to 6000
Baskets
Type of supports:
1 badpan and 2 urinal bottles; 2 bedpans (R-2B)
Electrical Connection
Electrical connection:
400V 3N AC 50Hz
Plug:
Cable with free ends
Availability monophase version:
Yes
60 Hz Possibility:
Yes, on demand
Hydraulic connection
Hot water connection with acquastop:
Yes
Cold water connection with acquastop:
Yes
Manuals and Certifications
Medical device according to (EU) Regulation 2017/745 (Annex IX) class IIa:
Yes
Interface
Cycle Archive:
Yes
Electronic control:
Yes
Remaining duration display:
Yes
End of cycle indicator:
Yes
Cycle download:
Yes, with USB pen drive; Optional, through LAN connection; Optional through RS232 connection
Traceability:
At least the last 100 executed programs
Display:
LCD
Construction
External material of the machine:
AISI 304
Washer Chamber Material:
AISI 304; AISI 316 as optional
Equipments
Steam Condenser:
Yes
Chemicals dosing:
Standard for descaler
Detergent peristaltic dosing pump:
Optional
Detergent level sensor:
Included
Anti-limescale dosing peristaltic pump:
Yes
Acqua Stop:
Yes
Medical devices normative
DMS Reference:
Version 01 - 26/6/2024
