Glassware washers GW4260-SC-00G
Type
Glassware washer 60 cm
Working temperature
Up to 95 °C
Door
Stainless steel door with glass porthole
Washer Chamber Material
AISI 316L
Forced hot-air drying system
Yes
Product dimensions WxDxH (mm)
600x600x850
Color touch display
The touch on glass LCD color display enables simple and intuitive daily operation. The compact design of the interface ensures the operator a full range of information, including specific programs for every need. In addition, thanks to the ECO program, it is possible to activate a washing cycle with a lower water and energy impact than traditional cycles.

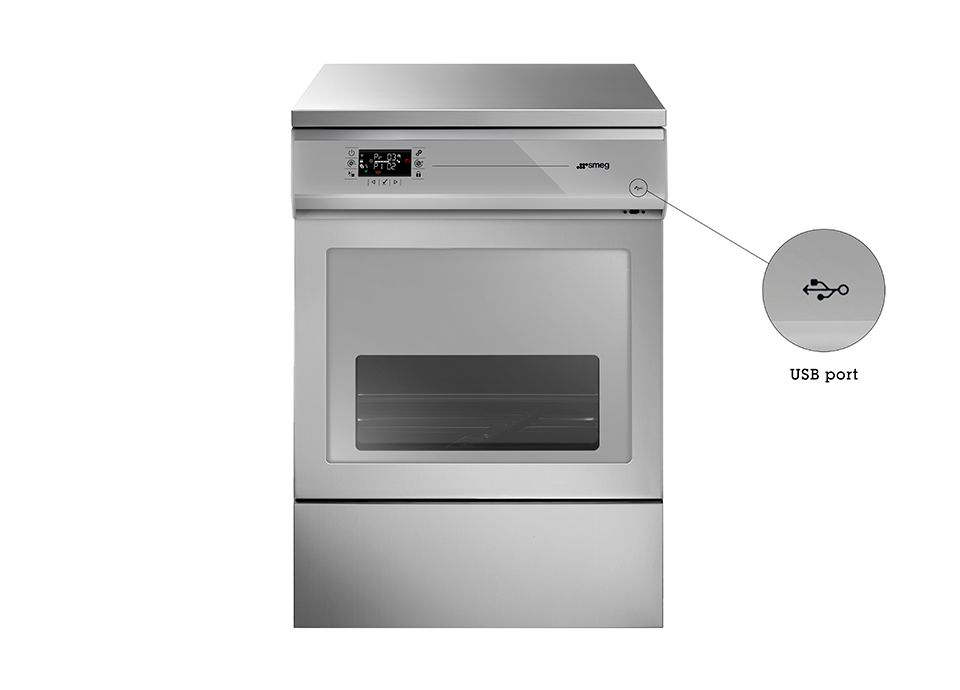

Data recording
USB input enables convenient and efficient laboratory data recording, as well as immediate connection to PC via software for diagnostics, cycle customization and timely data analysis.

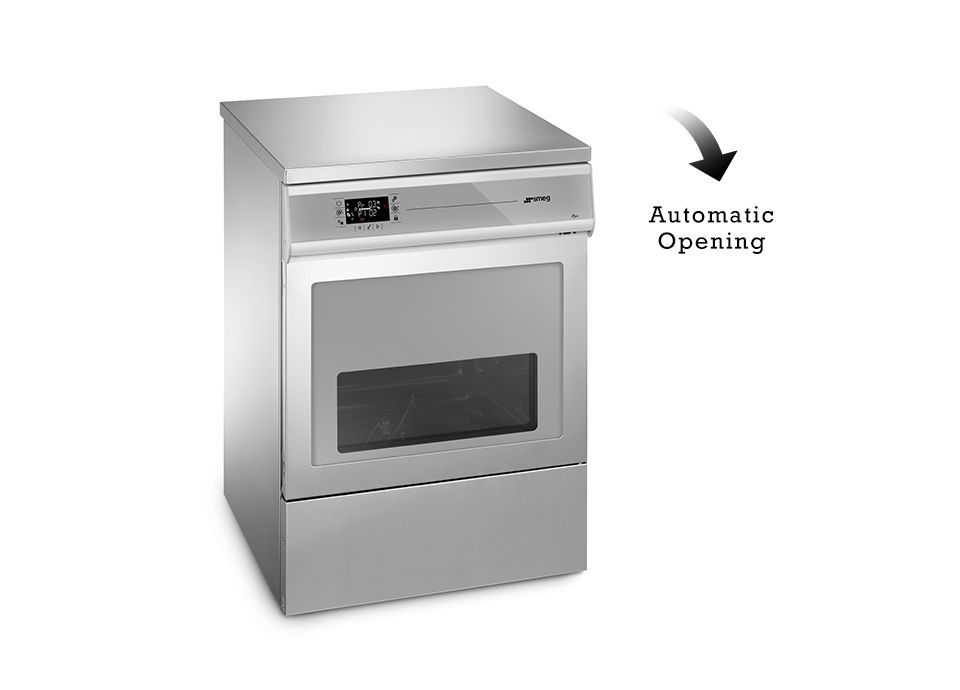

Complete drying
The machine ensures accurate complete drying, which achieves maximum performance and speed thanks to the automatic door opening.
Target
Instruments Solutions:
Life science
Life Science sector:
Laboratory; Pharmaceutical; Agro-food; Small Laboratories
Type
Type:
Glassware washer 60 cm
Technical Features
Working temperature:
Up to 95 °C
Washing levels:
till 2
Forced hot-air drying system:
Yes
HEPA Filter:
Optional
Door:
Stainless steel door with glass porthole
Undercounter installation:
Yes
Programs
Standard programs stores:
20
Modifiable programs:
20
Program editing:
Yes
Electrical Connection
Electrical connection:
3N AC 400V - 50Hz
Monophase conversion:
Yes, using ad hoc optional kit (WD-EC-1)
Convertible in tri-phase w/o neutral:
Yes, using ad hoc optional kit (WD-EC-3)
60 Hz Possibility:
Yes, on demand
Hydraulic connection
Cold water connection:
Yes
Hot water connection:
Optional (T4260AC)
Demi water connection:
Yes
Drain pump:
Yes
Booster pump for demineralized water:
Optional
Also available
Available versions:
GW4260-SC-000 - version with stainless steel door
Interface
Electronic control:
Yes
Alarm indicator:
Yes, on the display
Remaining duration display:
Yes
End of cycle indicator:
Yes
Traceability:
Last 100 executed programs
Cycle Archive:
Yes
Dowload cycle:
Optional, through LAN connection/ Yes, with USB pen drive
Construction
External material of the machine:
AISI 304
Washer Chamber Material:
AISI 316L
Chamber with rails:
Yes
Equipments
Peristaltic pump for dosing the liquid neutraliser:
Yes
Peristaltic pump for dosing the liquid detergent:
Yes
Peristaltic pump for caustic soda:
Optional
Peristaltic pump for defoamer:
Optional
Possibility to install additional peristaltic pumps:
Yes, up to 1
Chemicals dosing:
Optional
Detergent level sensor:
Optional
Steam Condenser:
Yes
Water softner:
Yes
Acqua Stop:
Optional
Probe passage hole for validation:
Optional
Logistic Information
Product dimensions WxDxH (mm):
600x600x850
