Glassware washers GW4290-00-000
Type
Glassware washer 90 cm
Working temperature
Up to 95 °C
Door
1, stainless-steel drop-down door
Washer Chamber Material
AISI 316L
Forced hot-air drying system
Yes
Product dimensions WxDxH (mm)
900x600x850
Scroll

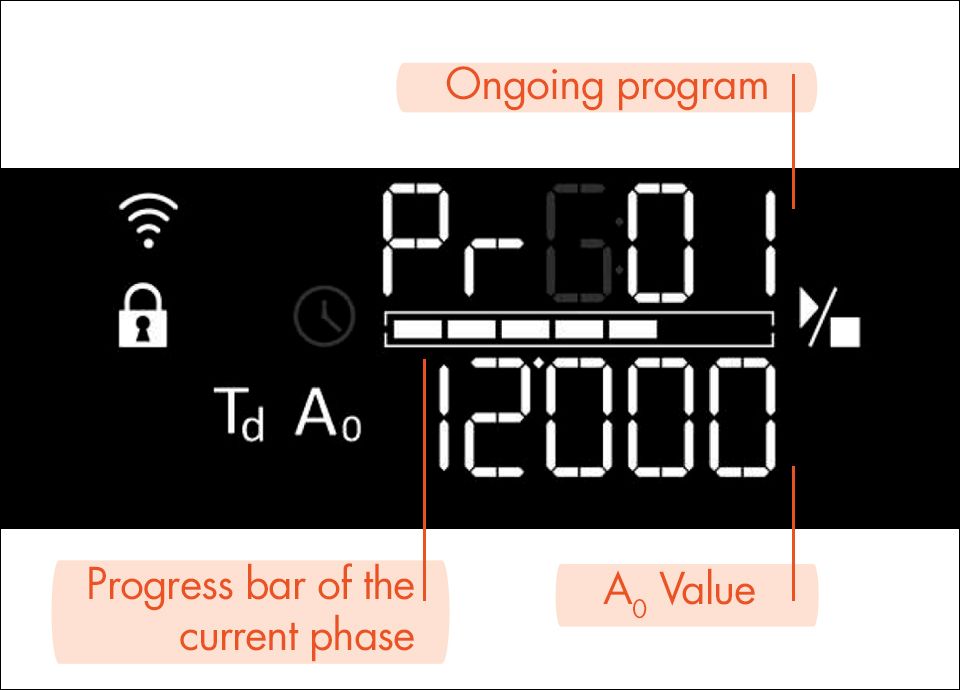

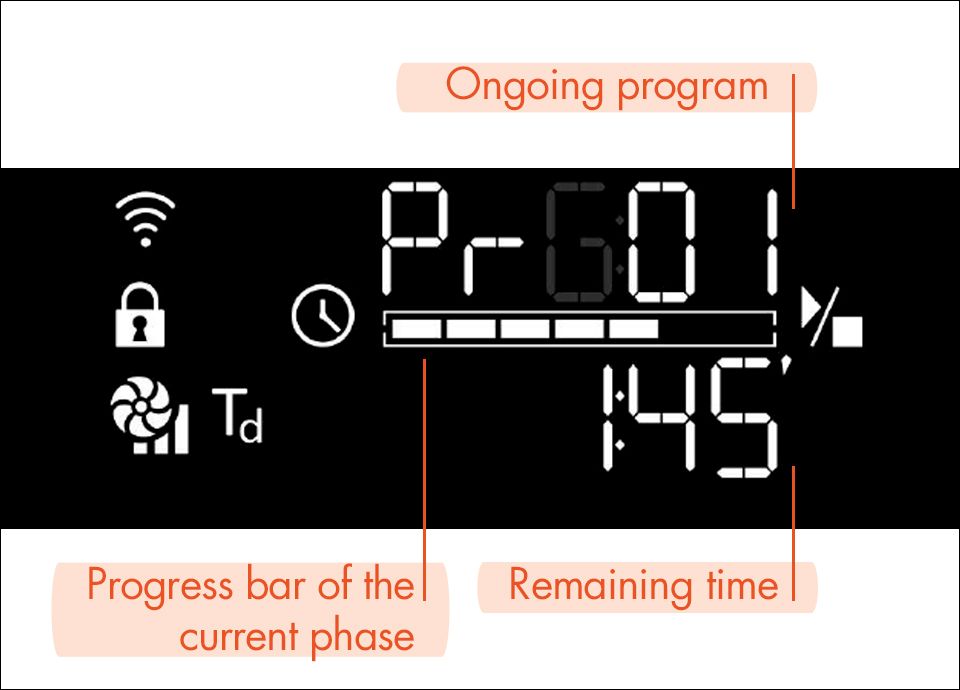

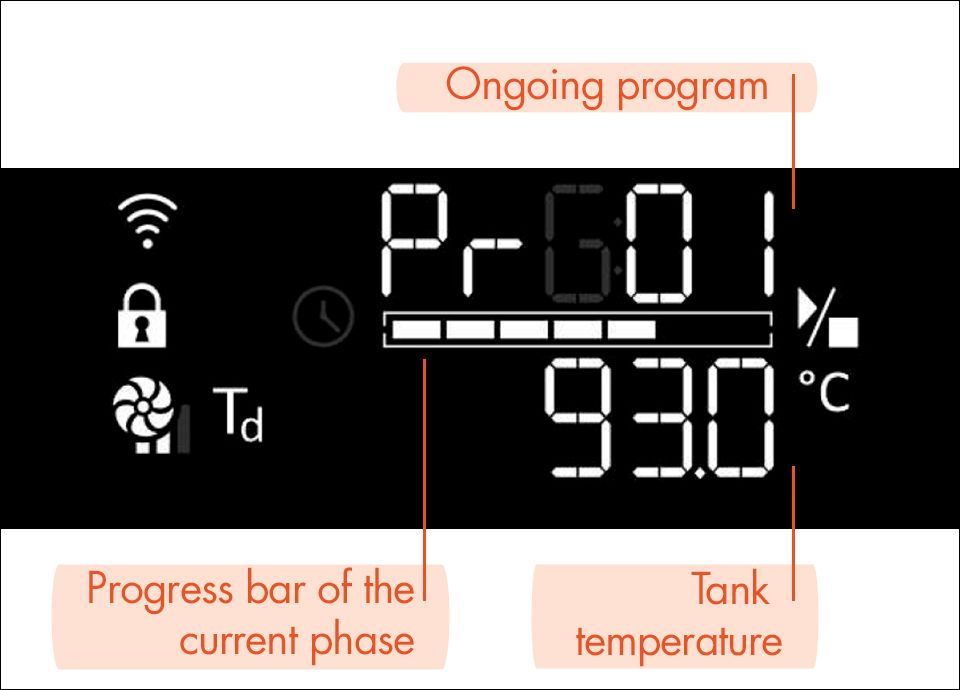

Color touch display
The color touch display enables simple and intuitive daily operation. The compact design of the interface ensures the operator a full range of information, including specific programs for every need. In addition, thanks to the ECO program, it is possible to activate a washing cycle with a lower water and energy impact than traditional cycles.
Detergent compartment
The machine has a capacious detergent compartment suitable for holding up to four 5-liter canisters, thanks to the shelf that can be used as an optional accessory.

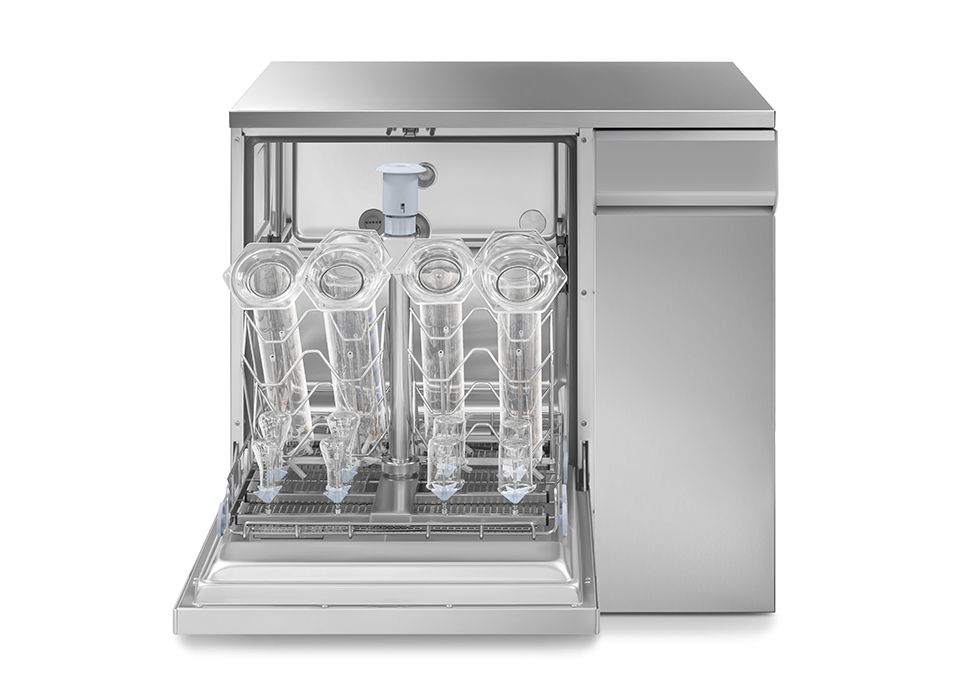

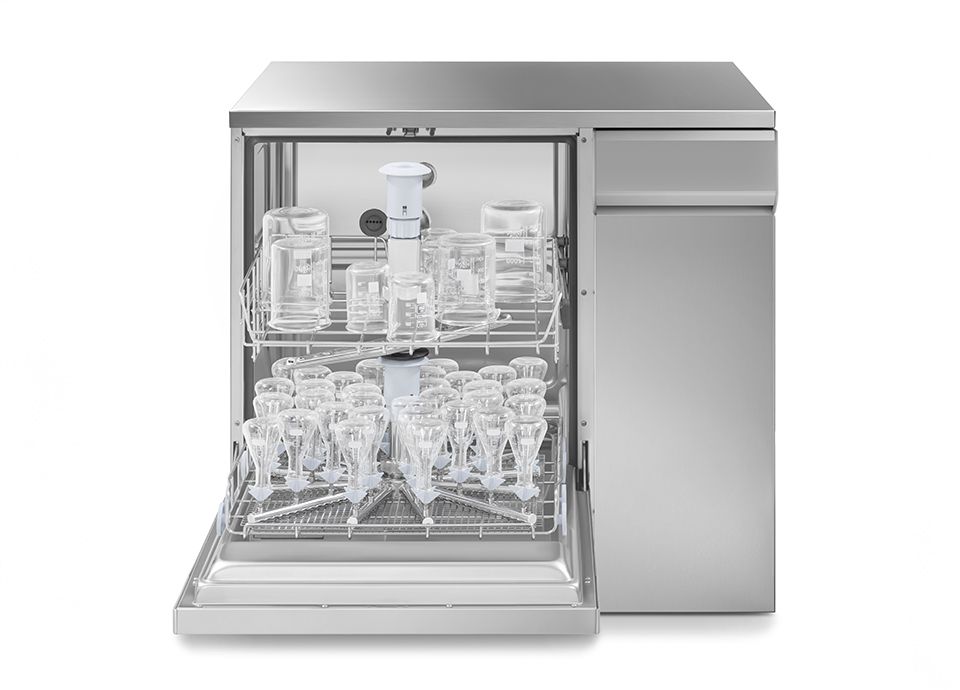

Maximum loading flexibility
Maximum loading flexibility is provided by a wide choice of trolley configurations to accommodate all laboratory instrumentation: long-necked and narrow-necked glasses, pipettes, test tubes, and large glasses.

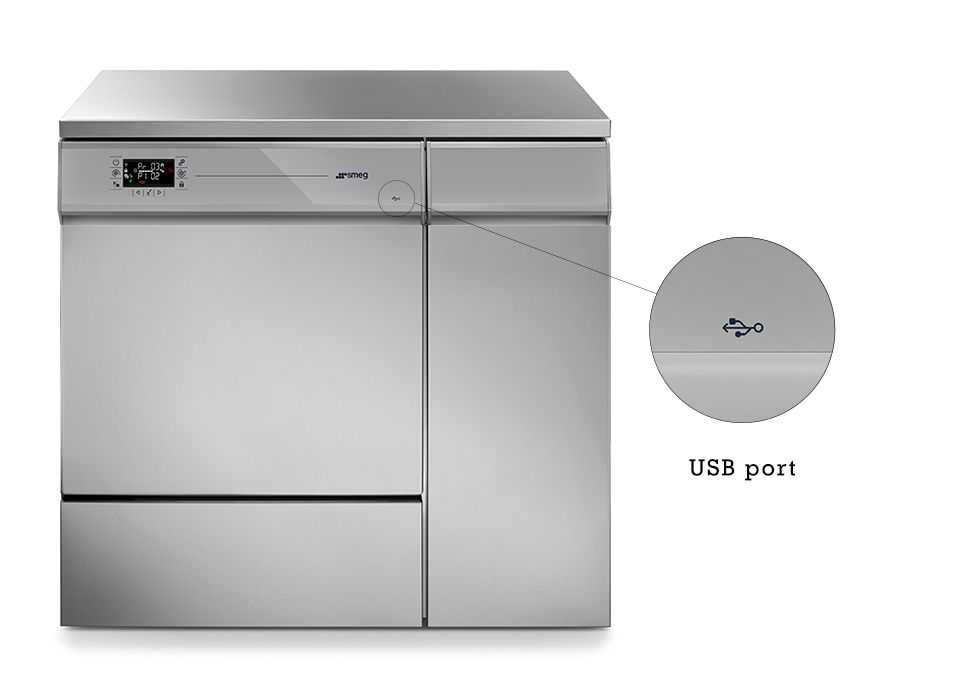

Data recording
USB input enables convenient and efficient laboratory data recording, as well as immediate connection to PC via software for diagnostics, cycle customization and timely data analysis.
Complete drying
The machine ensures accurate complete drying, which achieves maximum performance and speed thanks to the automatic door opening.
Target
Instruments Solutions:
Life science
Life Science sector:
Laboratory; Pharmaceutical; Agro-food; Small Laboratories
Type
Type:
Glassware washer 90 cm
Technical Features
Working temperature:
Up to 95 °C
Washing levels:
till 2
Forced hot-air drying system:
Yes
HEPA Filter:
Optional
Door:
1, stainless-steel drop-down door
Undercounter installation:
Yes
Programs
Standard programs stores:
20
Modifiable programs:
20
Program editing:
Yes
Electrical Connection
Electrical connection:
3N AC 400V - 50Hz
Monophase conversion:
Yes, using ad hoc optional kit (WD-EC4290-1)
Convertible in tri-phase w/o neutral:
Yes, using ad hoc optional kit (WD-EC4290-3)
60 Hz Possibility:
Yes, on demand
Plug:
Not present
Hydraulic connection
Cold water connection:
Yes
Hot water connection:
Optional (T4260AC)
Demi water connection:
Yes
Drain pump:
Yes
Booster pump for demineralized water:
Optional
Also available
Available versions:
GW4290-S0-000 - version with second dosing pump for liquid detergent; GW4290-0C-000 - version with integrated steam condenser
Interface
Electronic control:
Yes
Alarm indicator:
Yes, on the display
Remaining duration display:
Yes
End of cycle indicator:
Yes
Traceability:
Last 100 executed programs
Cycle Archive:
Yes
Dowload cycle:
Optional, through LAN connection/ Yes, with USB pen drive
Construction
External material of the machine:
AISI 304
Washer Chamber Material:
AISI 316L
Chamber with rails:
Yes
Equipments
Powder detergent entrance:
Yes
Peristaltic pump for dosing the liquid neutraliser:
Yes
Peristaltic pump for caustic soda:
Optional
Peristaltic pump for defoamer:
Optional
Possibility to install additional peristaltic pumps:
Yes, up to 2
Chemicals dosing:
Optional
Detergent level sensor:
Optional
Water softner:
Yes
Acqua Stop:
Optional
Probe passage hole for validation:
Optional
Cabinet for detergents:
Yes, for 2 canisters of 5l
Logistic Information
Product dimensions WxDxH (mm):
900x600x850
