Type

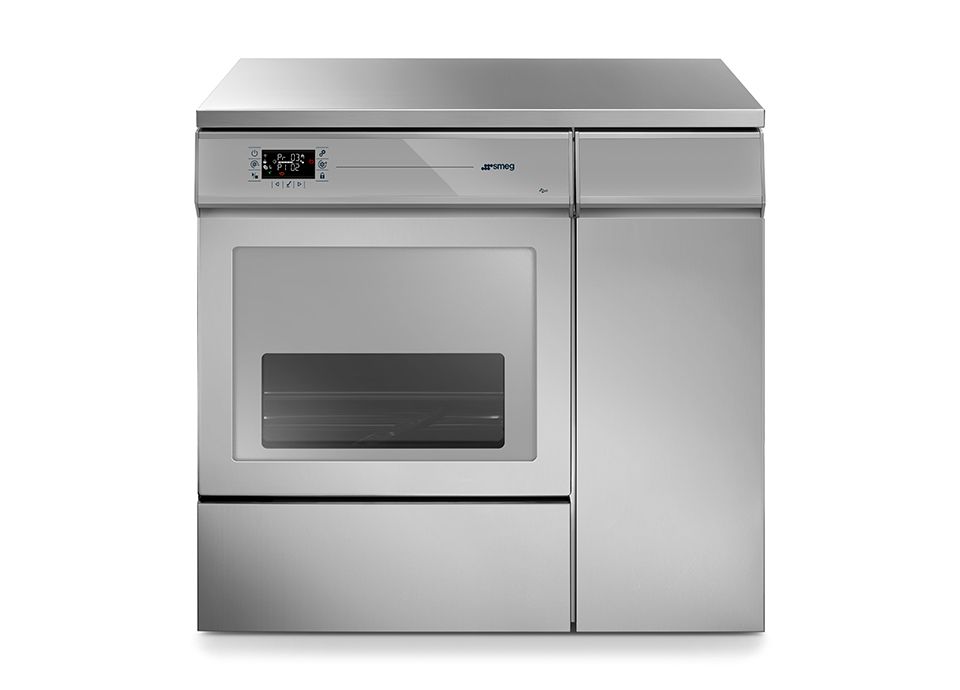

Glassware washer 90cm
Working temperature
Up to 95 °C
Door
Stainless steel door with glass porthole
Washer Chamber Material
AISI 316L
Drying System
Yes
Product dimensions WxDxH (mm)
900x600x850
Scroll
Color touch display
The color touch display enables simple and intuitive daily operation. The compact design of the interface ensures the operator a full range of information, including specific programs for every need. In addition, thanks to the ECO program, it is possible to activate a washing cycle with a lower water and energy impact than traditional cycles.
Detergent compartment
The machine has a capacious detergent compartment suitable for holding up to four 5-liter canisters, thanks to the shelf that can be used as an optional accessory.
Maximum loading flexibility
Maximum loading flexibility is provided by a wide choice of trolley configurations to accommodate all laboratory instrumentation: long-necked and narrow-necked glasses, pipettes, test tubes, and large glasses.

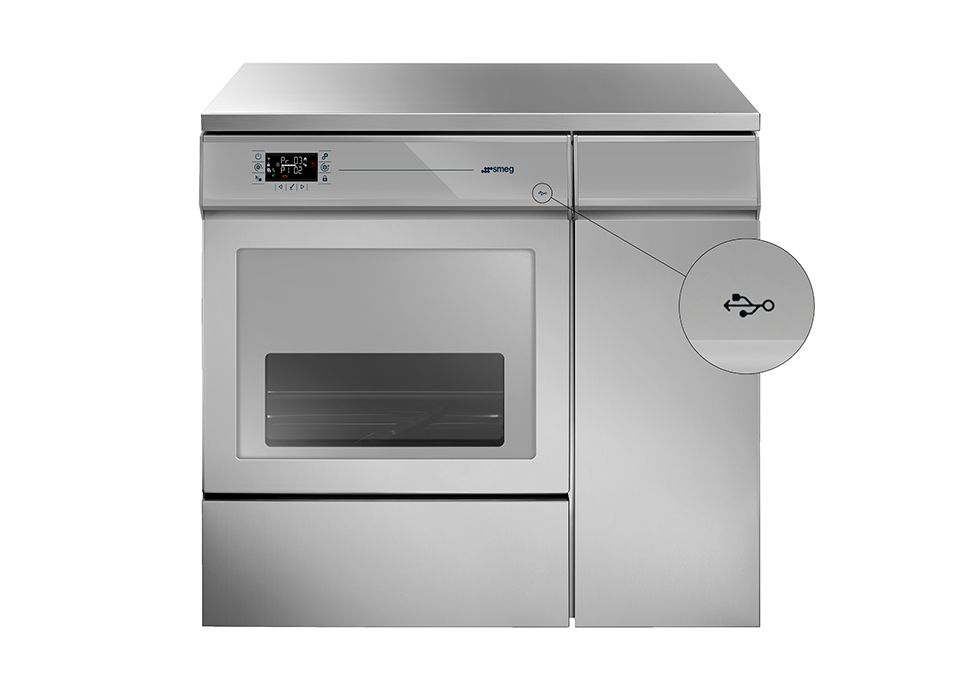

Data recording
USB input enables convenient and efficient laboratory data recording, as well as immediate connection to PC via software for diagnostics, cycle customization and timely data analysis.
Target
Instruments Solutions:
Life science
Life Science sector:
Laboratory; Pharmaceutical; Agro-food; Small Laboratories
Type
Type:
Glassware washer 90cm
Technical Features
Working temperature:
Up to 95 °C
Drying System:
Yes
Hepa Filter:
Optional
Door:
Stainless steel door with glass porthole
Noise level (dbA):
< 50 dBA
Undercounter installation:
Yes
Programs
Standard programs stores:
20
Modifiable programs:
20
Program editing:
Yes
Electrical Connection
Electrical connection:
3N AC 400V - 50Hz
Monophase conversion:
Yes, using ad hoc optional kit (WD-EC4290-1)
Convertible in tri-phase w/o neutral:
Yes, using ad hoc optional kit (WD-EC4290-3)
60 Hz Possibility:
Yes, on demand
Hydraulic connection
Drain pump:
Yes
Cold water connection:
Yes
Hot water connection:
Optional (T4260AC)
Demi water connection:
Yes
Booster pump for demineralized water:
Optional
Also available
Available versions:
GW4290-SC-000 - version with stainless steel door
Interface
Electronic control:
Yes
Alarm indicator:
Yes, on the display
Remaining duration display:
Yes
End of cycle indicator:
Yes
Traceability:
Last 100 executed programs
Cycle Archive:
Yes
Dowload cycle:
Optional, through LAN connection/ Yes, thorugh RS232 connection/ Yes, with USB pen drive
Construction
External material of the machine:
AISI 304
Washer Chamber Material:
AISI 316L
Logistic Information
Product dimensions WxDxH (mm):
900x600x850
Equipments
Peristaltic pump for dosing the liquid neutraliser:
Yes
Peristaltic pump for dosing the liquid detergent:
Yes
Peristaltic pump for caustic soda:
Optional
Peristaltic pump for defoamer:
Optional
Possibility to install additional peristaltic pump:
Yes, up to 2
Chemicals dosing:
Optional
Detergent level sensor:
Optional
Steam Condenser:
Yes
Water softner:
Yes
Acqua Stop:
Optional
Probe passage for validation:
Optional
Cabinet for detergents:
Yes, for 2 canisters of 5l
Optional
