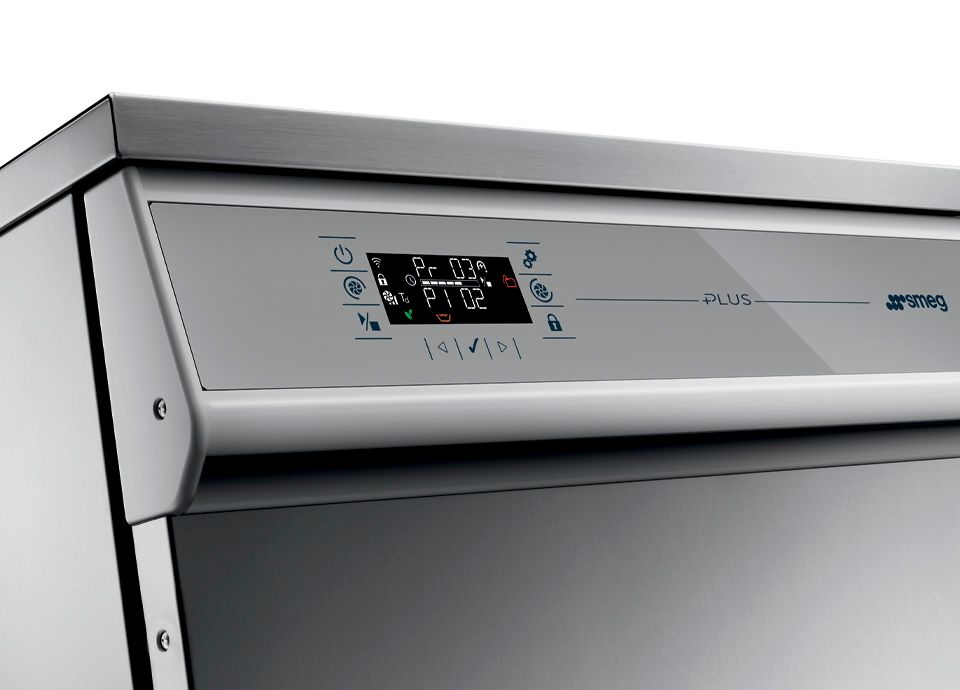

The color LCD touch-on-glass display allows real-time viewing of information on the operational parameters of the washing cycle, such as the selected program, progress status, temperature, remaining time, Ao values, and peristaltic pump dosing. Additionally, thanks to the ECO program, it is possible to activate a washing cycle with a lower water and energy impact compared to traditional cycles.

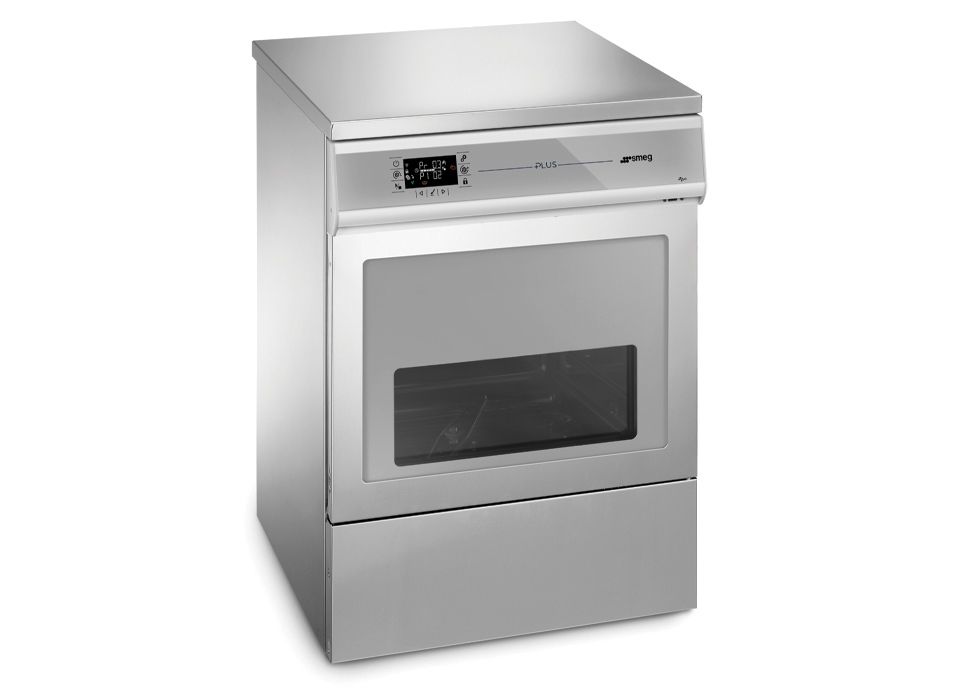

Glassware washers GW5260-SC-000
Type
Glassware washer 60 cm
Working temperature
Up to 95 °C
Door
1, stainless-steel drop-down door
Washer Chamber Material
AISI 316L
Product dimensions WxDxH (mm)
600x640x850
Color LCD display
Data recording

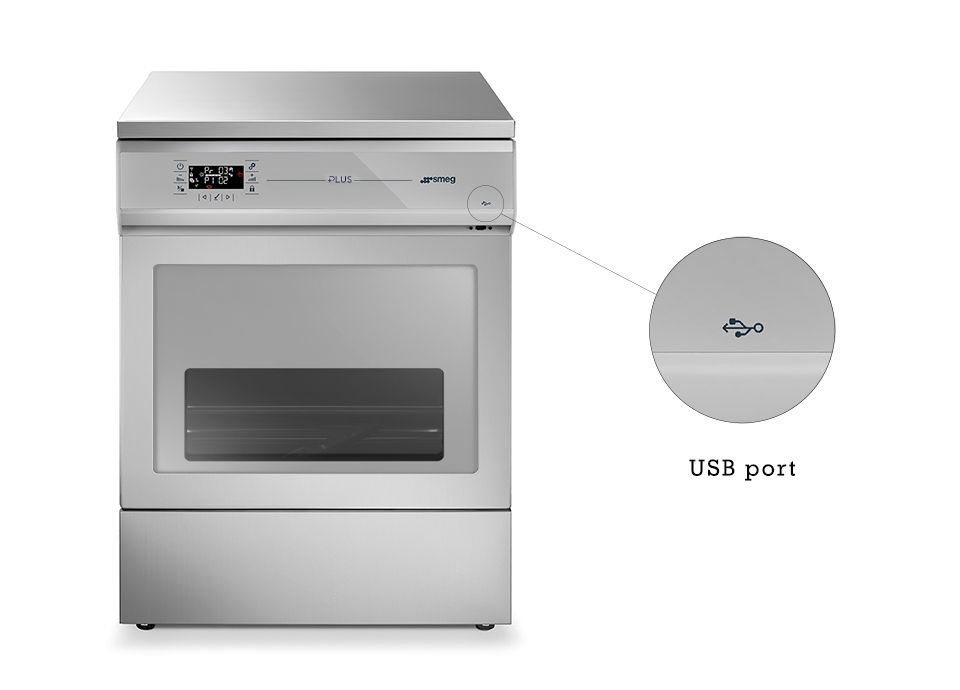

The USB input allows for practical and effective recording of laboratory data, as well as immediate connection to a PC via software for diagnostics, cycle customization, and detailed data analysis.
Premium materials
The washing chamber and the counter door are made of AISI 316L stainless steel, a material highly resistant to corrosion and mechanical stress. This ensures a long lifespan.
Target
Instruments Solutions:
Life science
Life Science sector:
Laboratory; Pharmaceutical; Petrochemical Industry; Agro-food
Type
Type:
Glassware washer 60 cm
Technical Features
Working temperature:
Up to 95 °C
Washing levels:
till 2
Optimized forced hot-air drying system:
Yes
HEPA Filter:
Optional
Door:
1, stainless-steel drop-down door
Undercounter installation:
Yes
Programs
Standard programs stores:
20
Modifiable programs:
20
Program editing:
Yes
Electrical Connection
Electrical connection:
3N AC 400V - 50Hz
Monophase conversion:
Yes, using ad hoc optional kit (WD-EC-1)
Convertible in tri-phase w/o neutral:
Yes, using ad hoc optional kit (WD-EC-3)
60 Hz Possibility:
Yes, on demand
Hydraulic connection
Cold water connection:
Yes
Hot water connection:
Yes
Demi water connection:
Yes
Drain pump:
Yes
Booster pump for demineralized water:
Optional
Also available
Available versions:
GW5260-SC-00G - glass door version
Interface
Electronic control:
Yes
Alarm indicator:
Yes, on the display
Remaining duration display:
Yes
End of cycle indicator:
Yes
Traceability:
Last 100 executed programs
Cycle Archive:
Yes
Dowload cycle:
Optional, through LAN connection/ Yes, with USB pen drive
Construction
External material of the machine:
AISI 304
Chamber capacity (net volume):
147 l
Washer Chamber Material:
AISI 316L
Chamber with rails:
Yes
Equipments
Peristaltic pump for dosing the liquid neutraliser:
Yes
Peristaltic pump for dosing the liquid detergent:
Yes
Peristaltic pump for caustic soda:
Optional
Peristaltic pump for defoamer:
Optional
Possibility to install additional peristaltic pumps:
Yes, up to 2
Chemicals dosing:
Optional
Detergent level sensor:
Optional
Steam Condenser:
Yes
Water softner:
Yes
Conductivity sensor:
Optional
Waste water separation solenoid valve:
Optional
Acqua Stop:
Optional
Probe passage hole for validation:
Optional
Logistic Information
Product dimensions WxDxH (mm):
600x640x850
