Glassware washers GW5290-SC-000 su Smeg.com

Glassware washers GW5290-SC-000

Type
Glassware washer 90cm
Working temperature
Up to 95 °C
Door
1, stainless-steel drop-down door; Glass as optional
Washer Chamber Material
AISI 316L
Drying System
Yes
Product dimensions WxDxH (mm)
900x640x850
  • Highlights
  • Features
  • Accessories

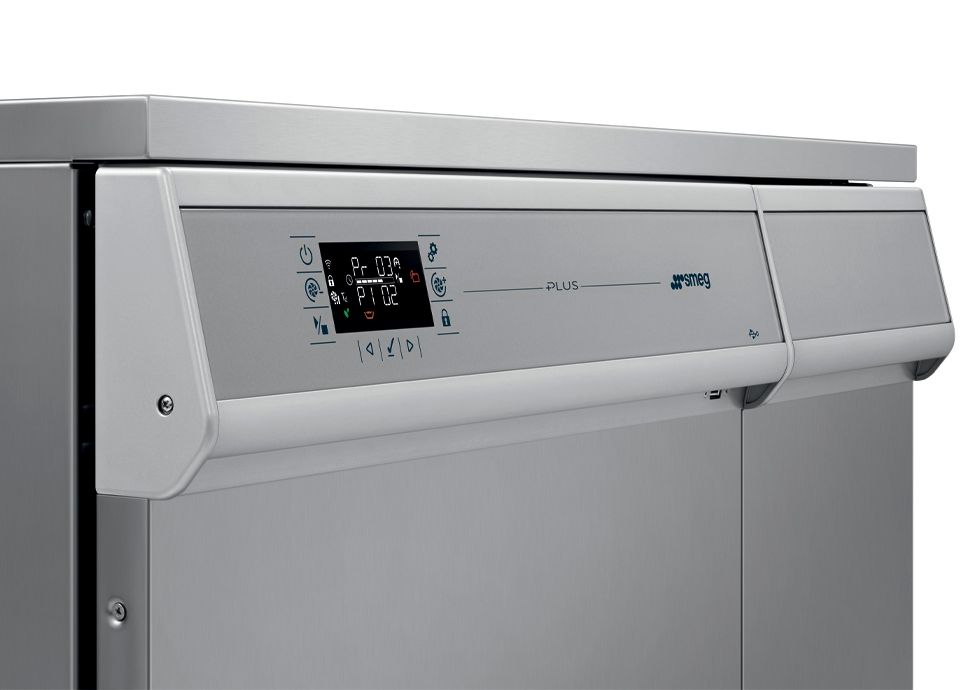

Color touch display

The color LCD touch-on-glass display allows real-time viewing of information on the operational parameters of the washing cycle, such as the selected program, progress status, temperature, remaining time, Ao values, and peristaltic pump dosing. Additionally, thanks to the ECO program, it is possible to activate a washing cycle with a lower water and energy impact compared to traditional cycles.

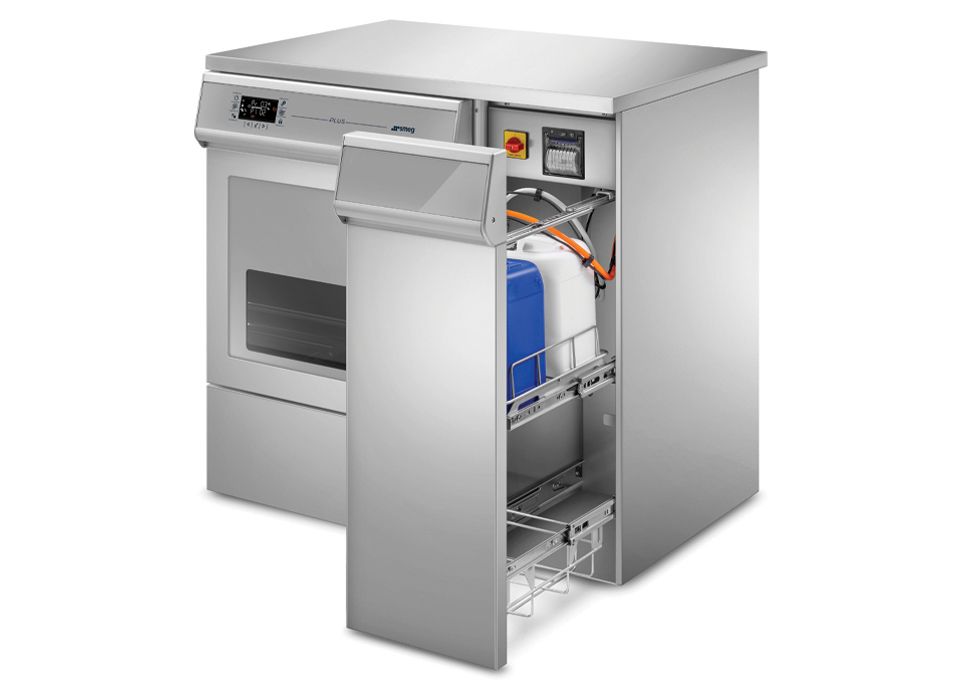

Detergent compartment

The machine has a capacious detergent compartment suitable for holding up to four 5-liter canisters, thanks to the shelf that can be used as an optional accessory.

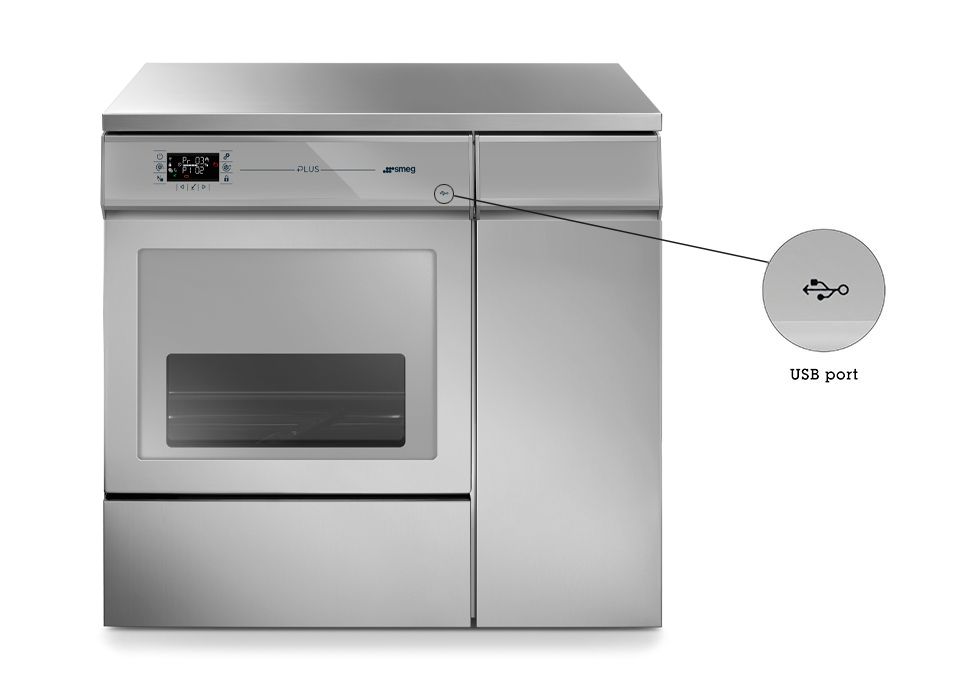

Data recording

USB input enables convenient and efficient laboratory data recording, as well as immediate connection to PC via software for diagnostics, cycle customization and timely data analysis.

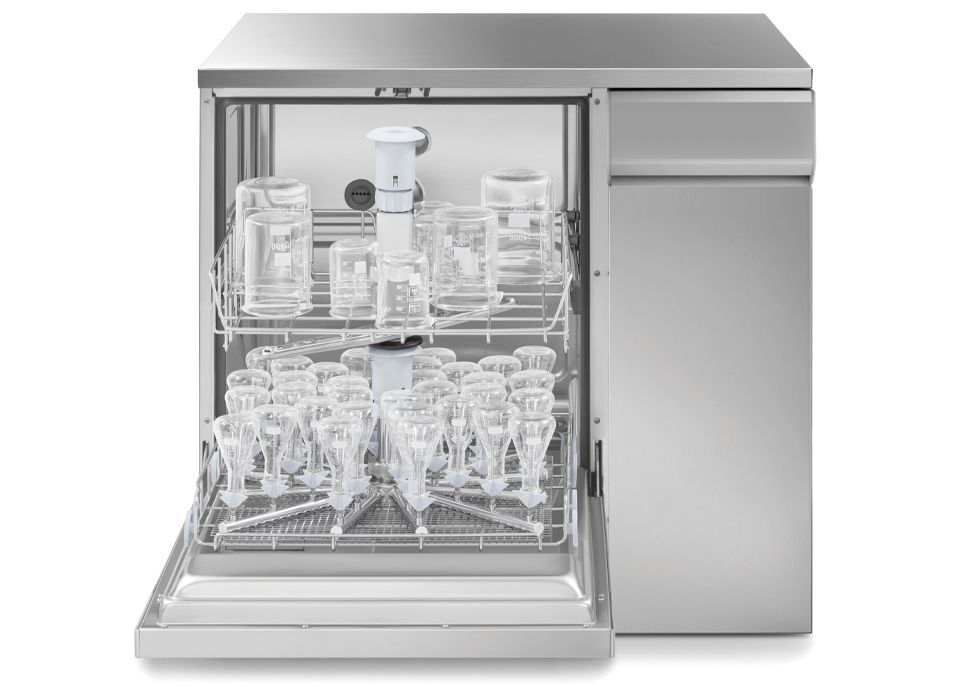

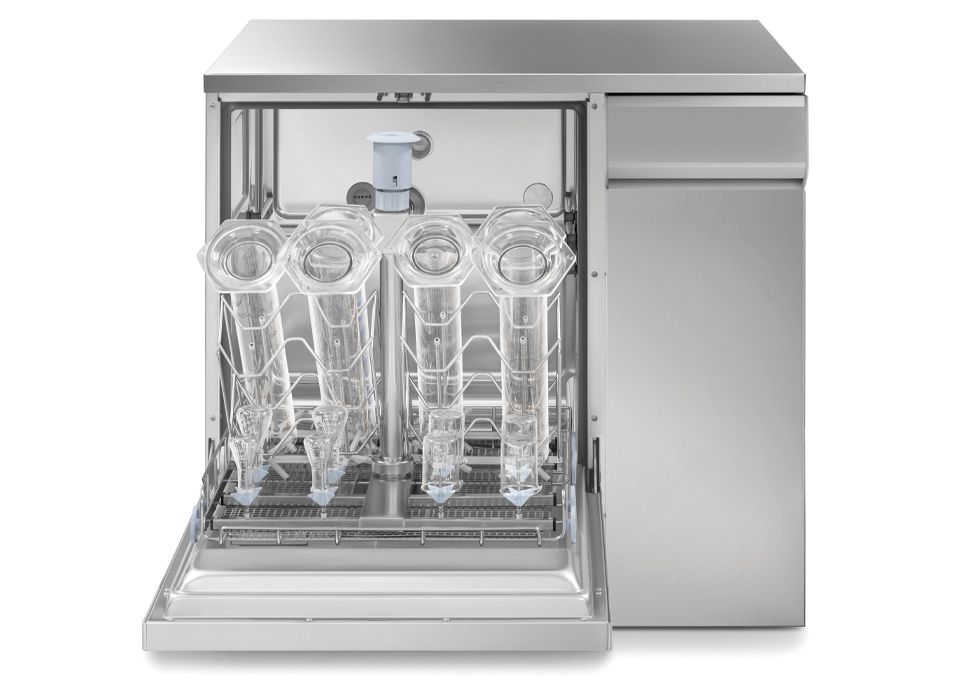

Loading flexibility

Maximum loading flexibility is provided by a wide choice of trolley configurations to accommodate all laboratory instrumentation: long-necked and narrow-necked glasses, pipettes, test tubes, and large glasses.

Premium materials

The washing chamber and the counter door are made of AISI 316L stainless steel, a material highly resistant to corrosion and mechanical stress. This ensures a long lifespan.

Complete drying

The forced hot air drying function allows for quick and effective drying without compromising the quality of the final result. This system not only speeds up the washing cycle but also ensures that any moisture residue is removed.

Target

Instruments Solutions: Life science
Life Science sector: Laboratory; Pharmaceutical; Petrochemical Industry; Agro-food

Type

Type: Glassware washer 90cm

Technical Features

Working temperature: Up to 95 °C
Drying System: Yes
Hepa Filter: Optional
Door: 1, stainless-steel drop-down door; Glass as optional
Noise level (dbA): < 50 dBA
Undercounter installation: Yes

Programs

Standard programs stores: 20
Modifiable programs: 20
Program editing: Yes

Electrical Connection

Electrical connection: 3N AC 400V - 50Hz
Monophase conversion: Yes, using ad hoc optional kit (WD-EC4290-1)
60 Hz Possibility: Yes, on demand

Hydraulic connection

Drain pump: Yes
Cold water connection: Yes
Hot water connection: Yes
Demi water connection: Yes
Booster pump for demineralized water: Optional

Also available

Available versions: GW5290-SC-00G - glass door version

Interface

Electronic control: Yes
Alarm indicator: Yes, on the display
Remaining duration display: Yes
End of cycle indicator: Yes
Traceability: Last 100 executed programs
Cycle Archive: Yes
Dowload cycle: Optional, through LAN connection/ Yes, thorugh RS232 connection/ Yes, with USB pen drive

Construction

External material of the machine: AISI 304
Washer Chamber Material: AISI 316L

Logistic Information

Product dimensions WxDxH (mm): 900x640x850

Equipments

Peristaltic pump for dosing the liquid neutraliser: Yes
Peristaltic pump for dosing the liquid detergent: Yes
Peristaltic pump for caustic soda: Optional
Peristaltic pump for defoamer: Optional
Possibility to install additional peristaltic pump: Yes, up to 3
Chemicals dosing: Optional
Detergent level sensor: Optional
Conductivity sensor: Optional
Steam Condenser: Yes
Water softner: Yes
Acqua Stop: Optional
Probe passage for validation: Optional
Cabinet for detergents: Yes, for 2 canisters of 5l
