Glassware washers GW7010T
Type
High capacity glassware washer
Working temperature
Up to 95 °C
Door
2, glass sliding doors
Washer Chamber Material
AISI 316L
Forced hot-air drying system
Yes
Product dimensions WxDxH (mm)
780x800x1950
Color touch display

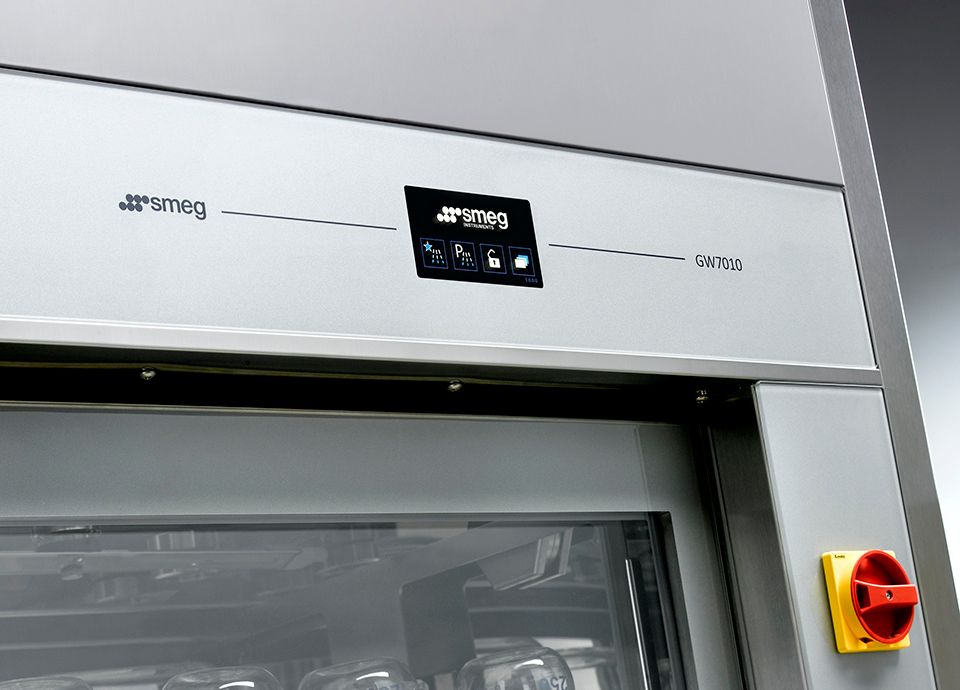

The colour TFT touch display on both sides of the machine allows for simple and intuitive daily operation. The compact design of the interface provides the operator with a full range of information, including 20 preset and 20 fully customisable programmes.
Detergent compartment
The machine is equipped with a large detergent compartment that can hold up to four 5-litre canisters and one 1-litre canister, with two peristaltic pumps supplied for automatic product dosing and the possibility of installing up to two additional pumps.
Maximum loading flexibility

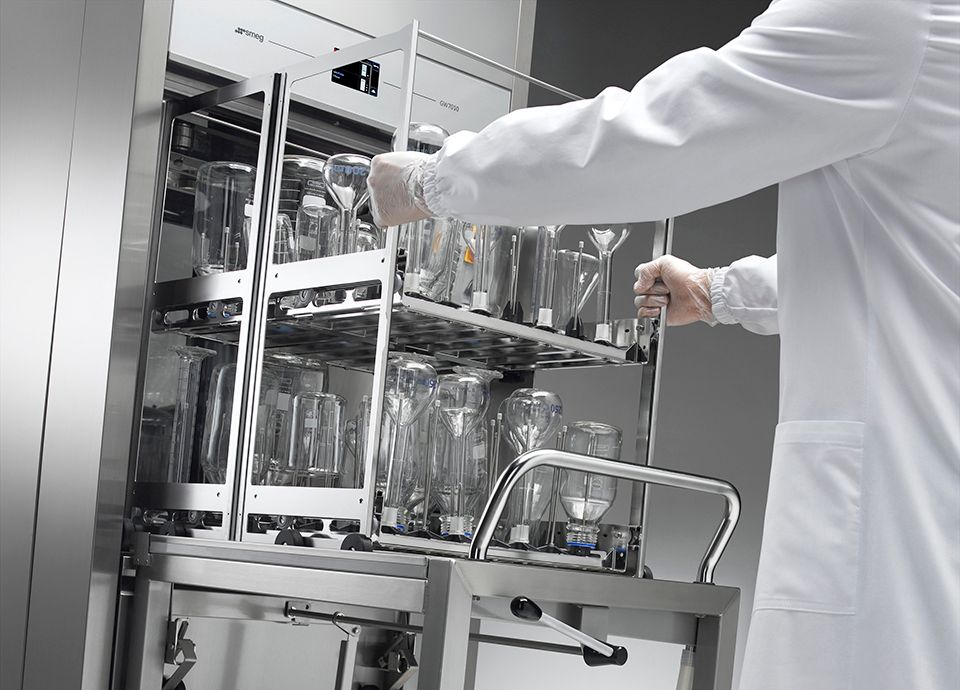

Maximum loading flexibility is ensured by a wide choice of trolley configurations, allowing all laboratory instrumentation to be accommodated: long and narrow-necked glassware, pipettes, test tubes and large glassware. The presence of the double sliding door prevents cross contamination between the dirty and clean environment.
Target
Instruments Solutions:
Life science
Life Science sector:
Laboratory; Pharmaceutical; Petrochemical Industry; Agro-food
Type
Type:
High capacity glassware washer
Technical Features
Working temperature:
Up to 95 °C
Washing levels:
till 5
Forced hot-air drying system:
Yes
HEPA Filter:
Optional
Door:
2, glass sliding doors
Programs
Standard programs stores:
20
Modifiable programs:
20
Program editing:
Yes
FAST washing cycles:
Yes, max. 33 min
Electrical Connection
Electrical connection:
3N AC 400V - 50Hz
Convertible in tri-phase w/o neutral:
Yes
60 Hz Possibility:
Yes, on demand
Plug:
Not present
Hydraulic connection
Cold water connection:
Yes
Hot water connection:
Yes
Demi water connection:
Yes
Drain pump:
Yes, only with wall drain
Booster pump for demineralized water:
Optional
Also available
Available versions:
GW7010TM - single door version with FAST cycles
Interface
Electronic control:
Yes
Alarm indicator:
Yes, on the display
Remaining duration display:
Yes
End of cycle indicator:
Yes
Traceability:
Last 100 executed programs
Cycle Archive:
Yes
Set of display languages:
IT (Italiano), EN, DE, FR, PT, RU
Dowload cycle:
Optional, through LAN connection/ Yes, with USB pen drive
Construction
External material of the machine:
AISI 304
Washer Chamber Material:
AISI 316L
Equipments
Detergent compartment:
Yes, for 3 canisters of 5 liters and one canister of 1 liter
Peristaltic pump for dosing the liquid neutraliser:
Yes
Peristaltic pump for dosing the liquid detergent:
Yes
Peristaltic pump for caustic soda:
Optional
Peristaltic pump for defoamer:
Optional
Possibility to install additional peristaltic pumps:
Yes, up to 2
Chemicals dosing:
Optional
Detergent level sensor:
Optional
Steam Condenser:
Optional
Water softner:
Optional
Conductivity sensor:
Optional
Waste water separation solenoid valve:
Optional
Probe passage hole for validation:
Optional
Logistic Information
Product dimensions WxDxH (mm):
780x800x1950
Optional
