Sterilizers HMS04-GP
Type
Medical Steam Sterilizer - Medium & Big Volumes
STU loading capacity
4
Door
2, sliding doors in AISI 316L stainless steel
Chamber material
Stainless steel AISI 316L; AISI 316 Ti optional
Steam generator
Standard
Vacuum pump
Yes
Target
Health Care Sector:
CSSD
Instruments Solutions:
Health Science
Type
Type:
Medical Steam Sterilizer - Medium & Big Volumes
Technical Features
Chamber capacity:
334 l
Temperature range:
110 - 136 °C
STU loading capacity:
4
Door:
2, sliding doors in AISI 316L stainless steel
Safety Door Lock:
Yes
Emergency opening system:
Yes
Temperature sensors in Tank:
2 x PT100
Programs
Standard programs stores:
19
Modifiable programs:
10
Test programs:
2
Options

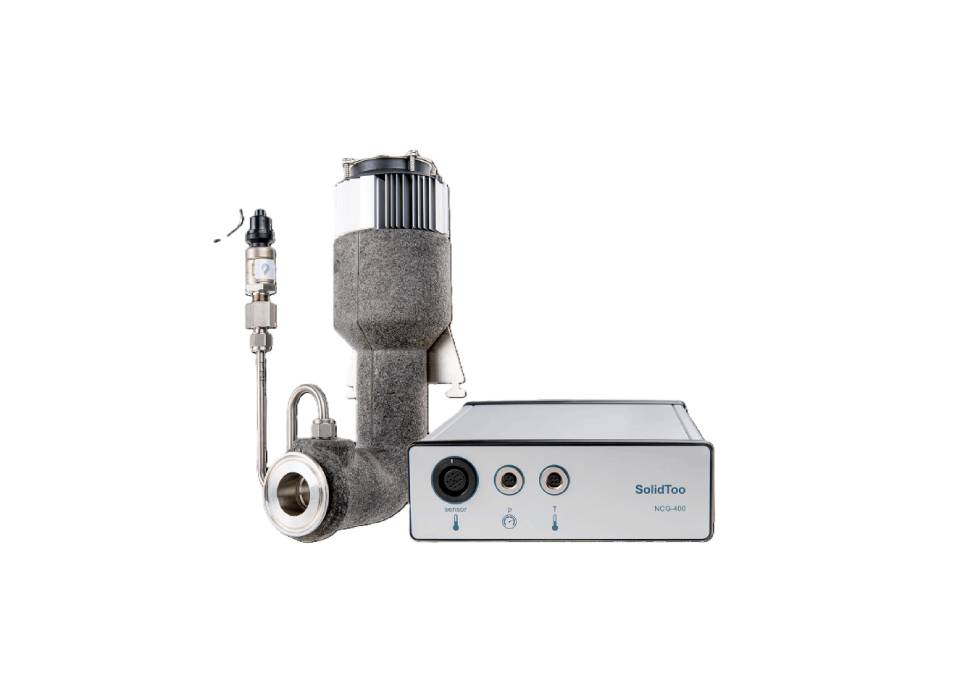

NCG sensor for automated and constant monitoring of non-condensable gases (NCG):
Yes

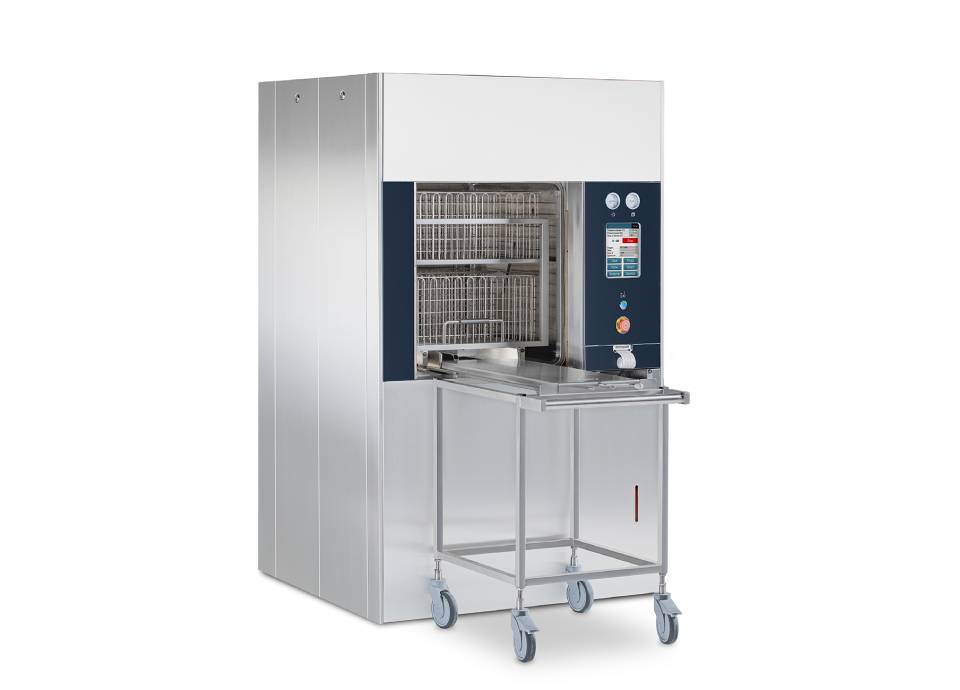

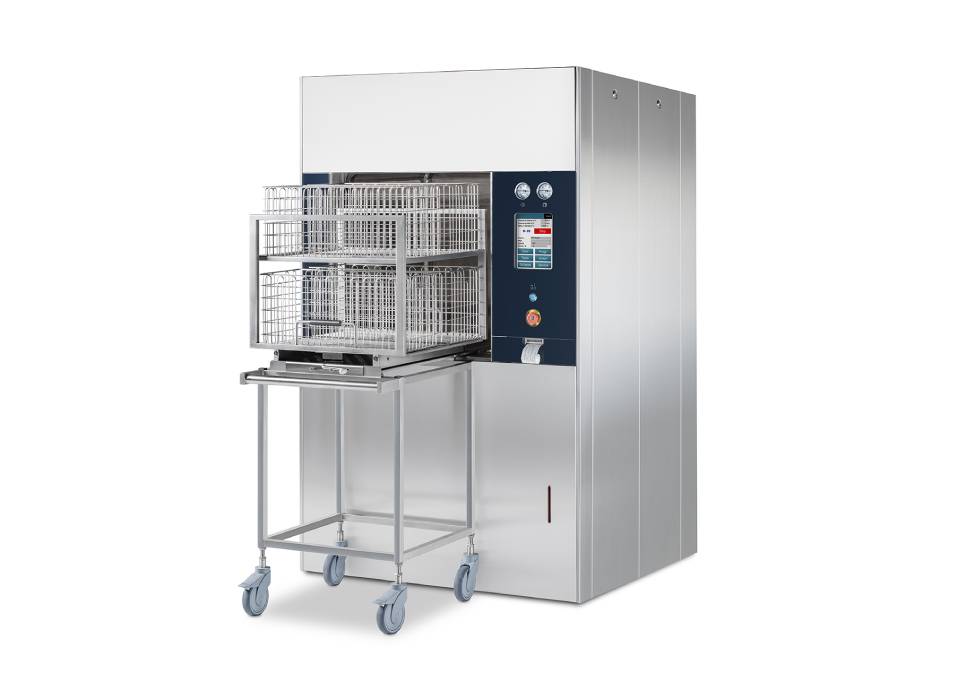

Transport trolley for easy loading/unloading:
Yes
Automatic loading/unloading system:
Yes
Electrical Connection
Electrical connection:
200-230V 3N~/ 50Hz; 380-400V 3N~/ 50Hz
60 Hz Possibility:
Yes, on demand
Manuals and Certifications
Medical device declaration:
Yes
Also available
Available versions:
HMS04-GM - single door version; HMS04-0P - version without integrated steam generator; HMS04-0M - single door version without integrated steam generator
Interface

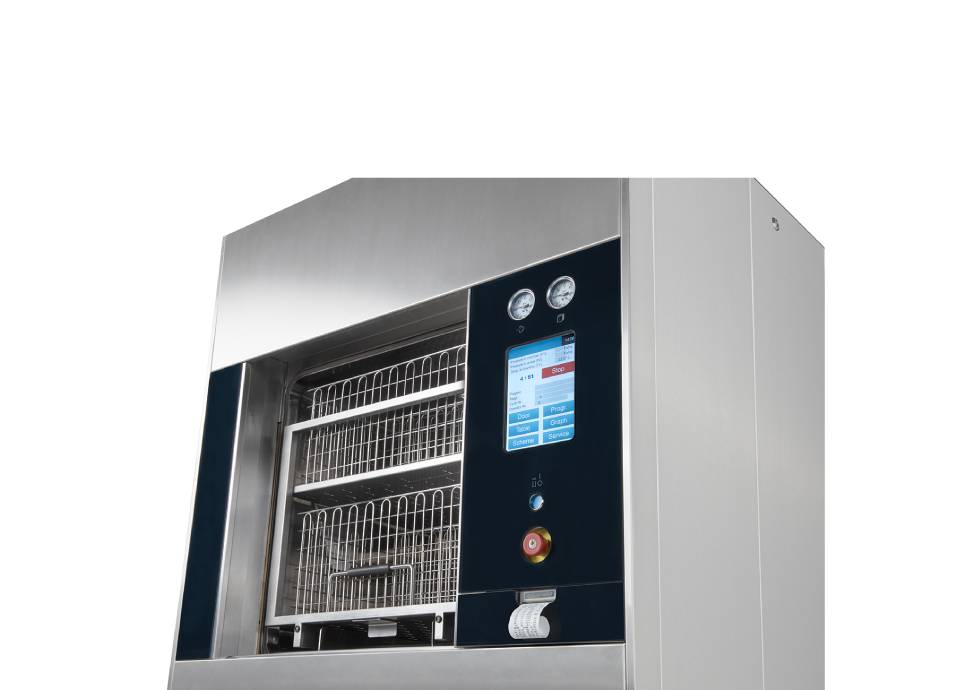

Display:
9.7" LCD Touch Screen on loading side, Optional 7" LCD Touch Screen on unloading side
USB Port:
Yes
Alarm display:
Yes, on the display
Programme progress indicator:
Yes
End of cycle indicator:
Yes
Cycle Archive:
Yes
Ethernet port:
Optional
Download cycle:
Optional, through printer or dedicated software

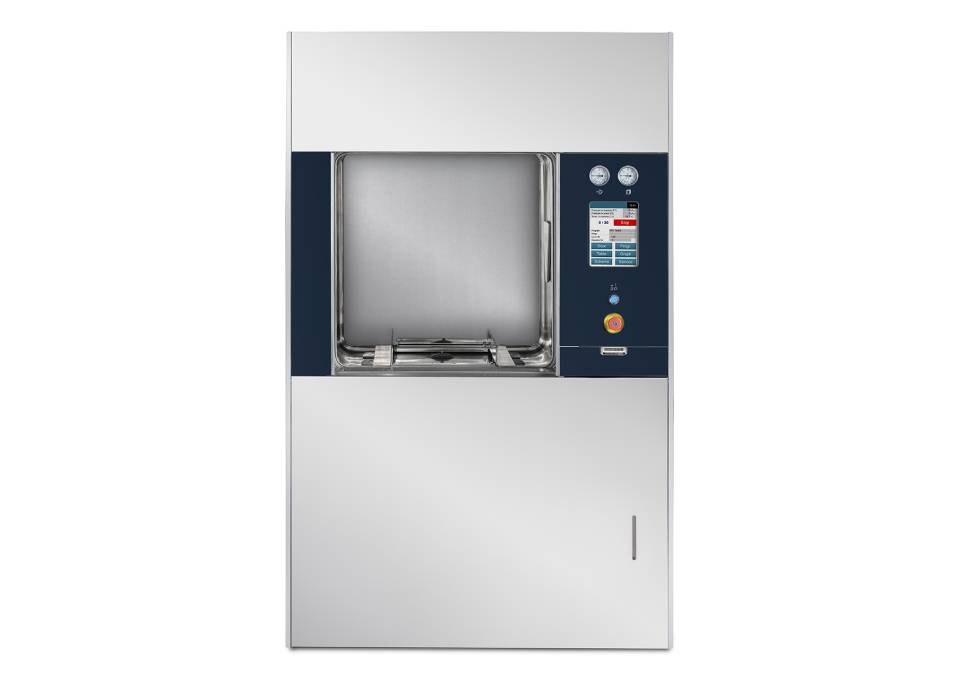

Construction
Heating jacket material:
AISI316L stainless steel; AISI 316 Ti optional
Chamber material:
Stainless steel AISI 316L; AISI 316 Ti optional
External material of the machine:
Stainless Steel AISI 304
Chamber and jacket stainless steel piping with Tri-Clamp fittings:
Optional
Equipments
Jacket system for efficient heat distribution:
Yes
Steam generator:
Standard
HEPA air intake filter:
Yes, for particles up to 0.2 µm in size
Vacuum pump:
Yes
Probe passage for validation:
Yes
Integrated panel printer:
Yes
Logistic Information
Dimensions of the product WxDxH (mm):
1170x970x1900
